All steel system-WEIMAX

The partition wall system is an all-steel structure. The vertical and horizontal support frames of the partition wall are made of galvanized steel keels; the outer frame of the partition wall is made of 1.0mm cold-rolled plate and stainless steel plate, combined with fireproof glass and steel panel modules. The steel keel is made of 1.0mm environmentally-friendly galvanized steel (D520), which is rolled and formed by 36 rollers. The transverse and longitudinal support of the I-beam steel keel structure mechanics is pre-damped and anti-collision treatment with the frame; the keel is reserved. Trace holes to avoid the integrity of the keel and the stability of the partition system, and to detect toxic substances.

Product advantages
High-strength fire-resistance: up to 120 minutes of fire resistance according to international testing standards.
One-piece molding: high precision, no length limit, to meet the designer's endless design philosophy.
Precise positioning: high-precision metal decorative lines, the module spacing can be consistent at the beginning and the end, no deviation, to ensure the beauty of the line.
Panel fastener integration: no need to use other fasteners, the installation procedure is streamlined, minimizing the decoration time and saving labor costs.
Convenient installation structure: no longer worrying about finding a professional installer.

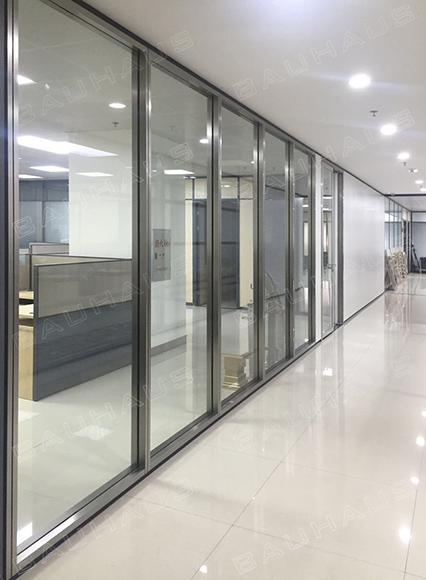

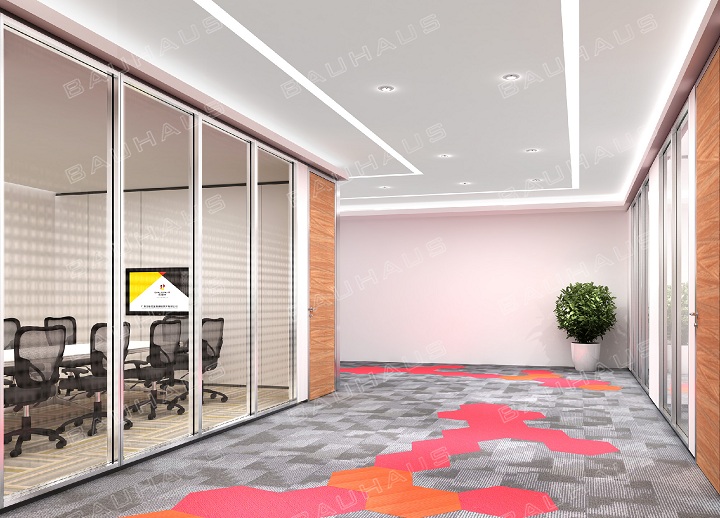

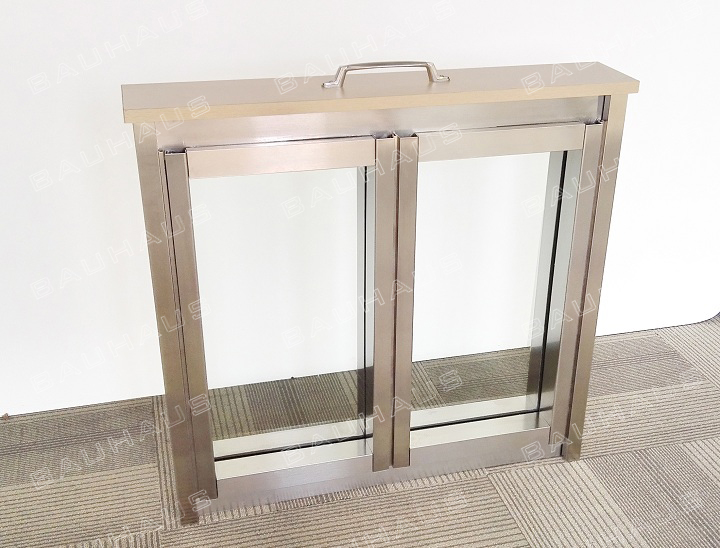

Stainless steel single glass partition

Wall structure: stainless steel system
Wall appearance: wall thickness 100mm, upper rail height 25mm, lower rail height 40mm, glass frame width 25mm, module spacing 6mm.
Glass assembly: safety or fireproof glass with a thickness of 6, 8, 12mm
Fire endurance: EI120min
Impact strength: 1000Nm
Sound insulation load: 48dB-50dB

Recommendation: The area of a single piece of glass is not more than 3m2, and it should be considered to increase unnecessary costs during transportation.

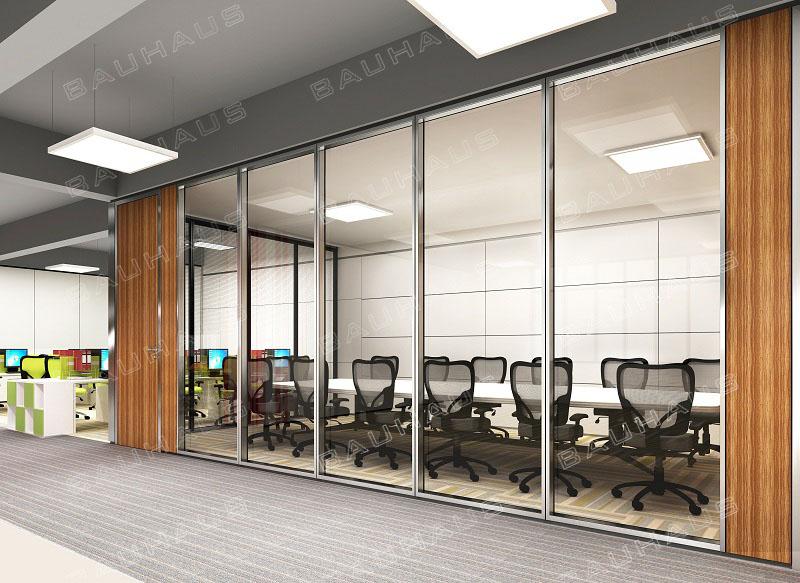

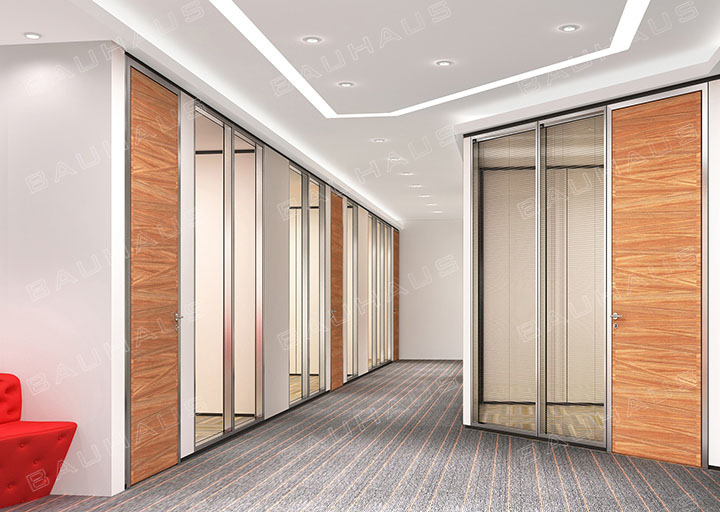

Stainless steel double glass partition

Wall structure: stainless steel system
Wall appearance: wall thickness 100mm, upper rail height 25mm, lower rail height 40mm, glass frame width 25mm, module spacing 6mm.
Glass assembly: safety or fireproof glass with a thickness of 5 or 6 mm
Fire endurance: EI120min
Impact strength: 1000Nm
Sound insulation load: 48dB-55dB

Suggestion: In order to achieve better sound insulation effect, it is best to arrange different thickness of glass on the front and back sides. The area of single glass is not more than 3m2. At the same time, it should consider adding unnecessary cost during transportation.

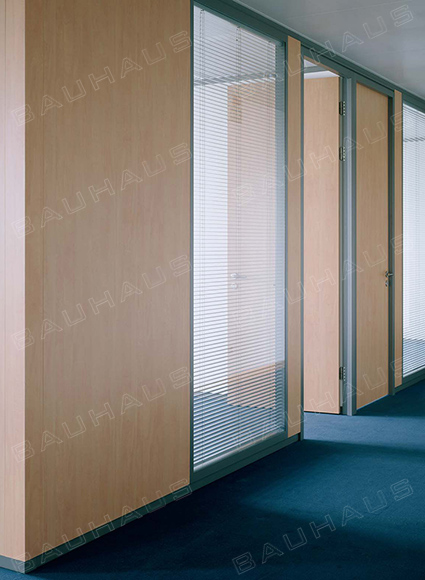

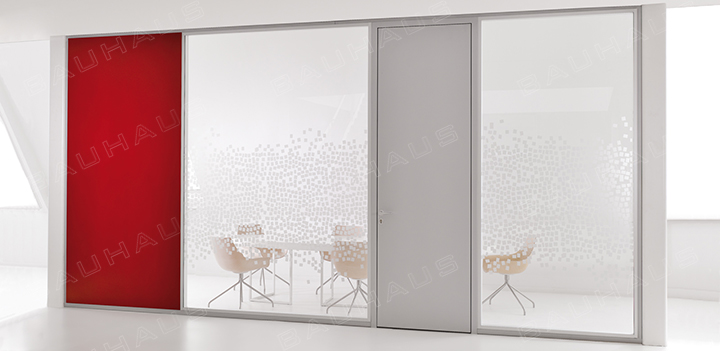

Steel single bread wall

Wall structure: all steel system
Wall appearance: wall thickness 50mm, baseboard height 40mm, module spacing 6mm.
Glass assembly: safety or fireproof glass with a thickness of 5 or 6 mm
Fire endurance: EI120min
Impact strength: 1000Nm
Sound insulation load: 48dB-50dB
Panel assembly: The system is equipped with 16mm thick steel composite panel (1.0mm steel plate lining 15mm gypsum board). It can also be used with any veneer of 12 or 15mm thickness, or with 5 or 6mm thick safety or fireproof glass.

Note: Steel panels are between 300-952mm wide and the height is not limited, just consider shipping and loading. The surface of the panel can be treated with solid color or wood grain color, and the color and texture are rich and varied.

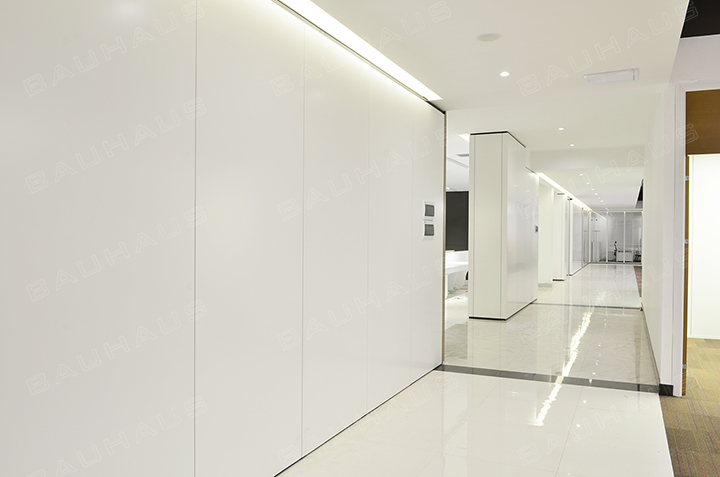

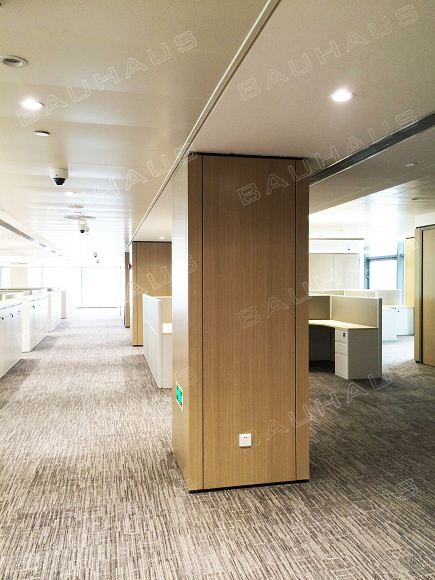

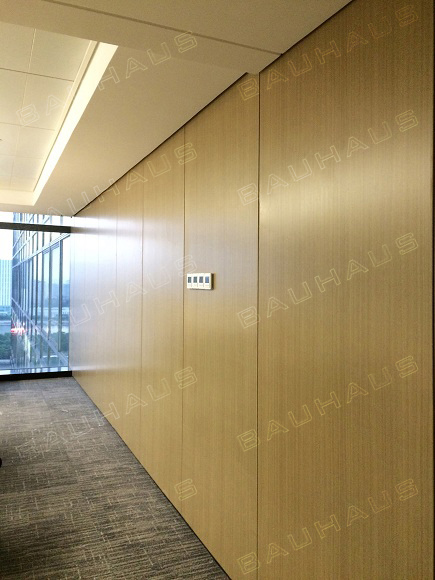

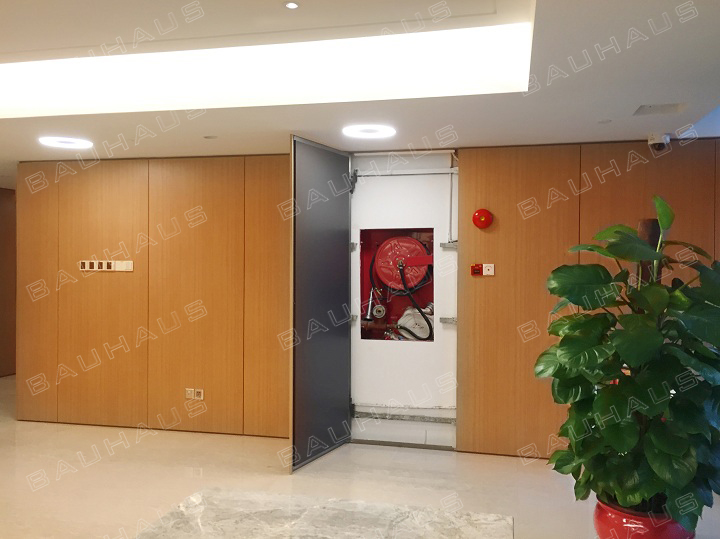

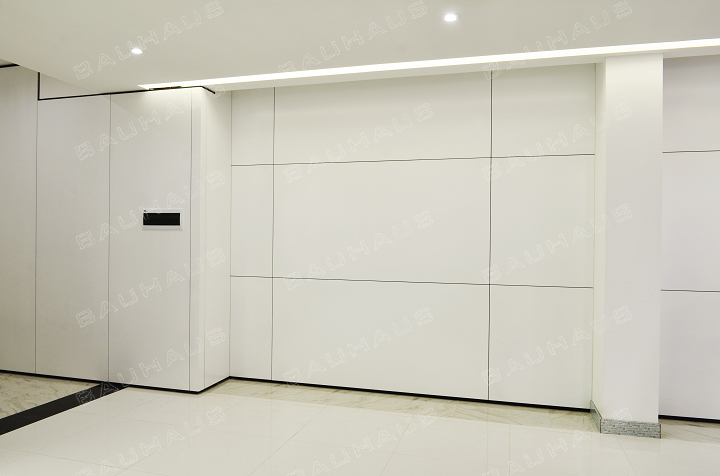

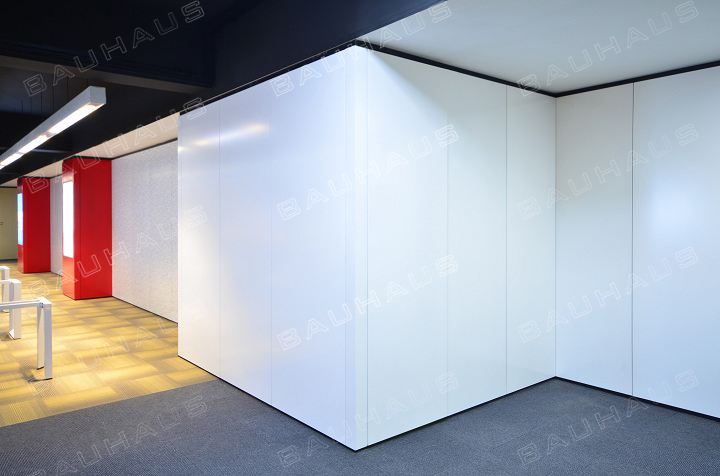

Steel panel

Wall structure: all steel system
Wall appearance: wall thickness 100mm, upper and lower rail height 40mm, module spacing 6mm.
Fire endurance: EI120min
Impact strength: 550Nm
Sound insulation load: 42dB-50dB
Panel assembly: It adopts 0.8mm environmental protection galvanized steel plate or stainless steel plate for rolling forming, surface spraying or sanding treatment, lining 15mm gypsum board; panel fastener integrated design.

Note: The steel panel has a width of 300-1150mm and the height is not limited. Just consider transportation and loading. The surface of the panel can be treated with solid color or wood grain color, and the color and texture are rich and varied.

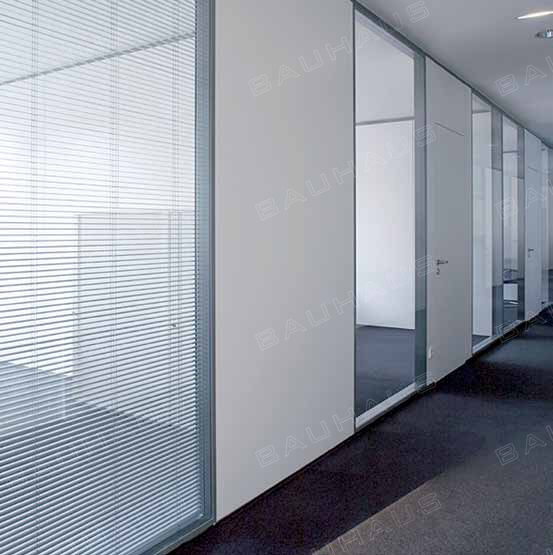

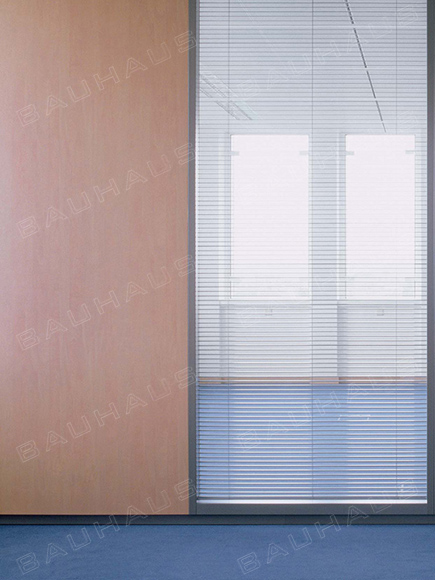

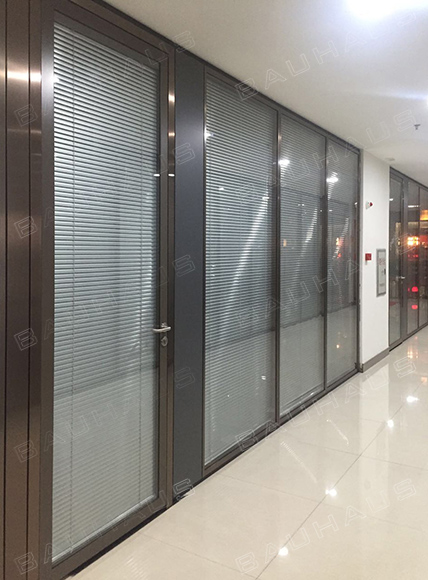

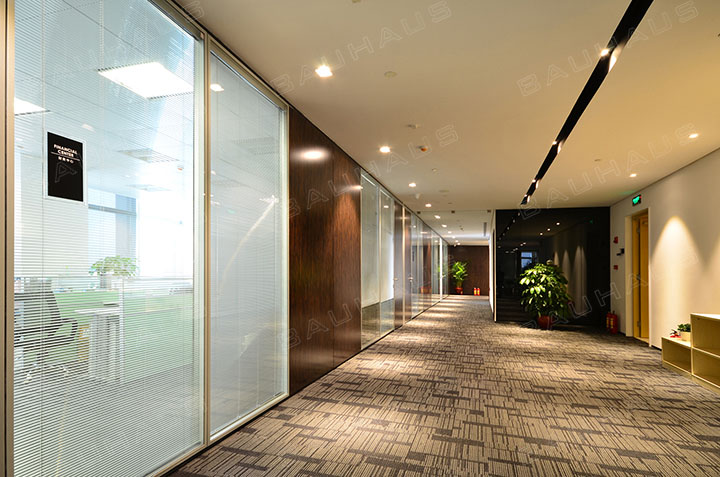

All steel fire double glass louver

Metal blinds selection
Width of venetian blinds: 16mm, 25mm, 50mm
Thickness of venetian blind: 0.21mm
The choice of the color of the louver: can be freely matched according to the color of the profile.
The use of louvers: external manual knob, electric flip dimming electric lift belt flip dimming.

Suggest:
1. In order to ensure better use of the manual knob and motor unit, the width of a single set of louvers does not exceed 1150mm.
2, the selection of high-quality venetian blinds, which can ensure good visual effects and aesthetics for a long time, and can avoid the trouble of having to disassemble the partition wall due to the replacement of poor venetian blinds.

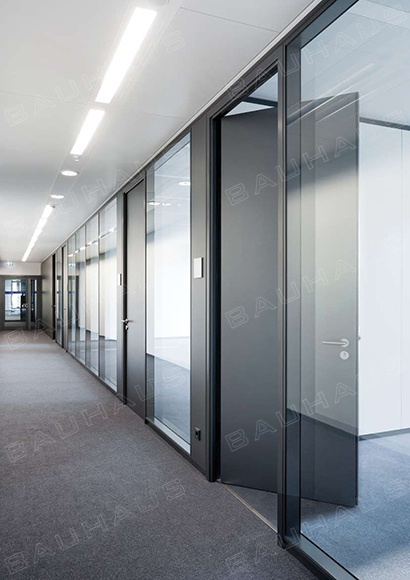

All steel fire double glass

Wall structure: all steel system
Wall appearance: wall thickness 100mm, upper and lower rail height 40mm, glass frame width 25mm, module spacing 6mm.
Glass assembly: Safety or fireproof glass with a thickness of 5 or 6 mm.
Fire endurance: EI120min
Impact strength: 550Nm
Sound insulation load: 42dB-55dB

Suggestion: In order to achieve better sound insulation effect, it is best to arrange different thickness of glass on the front and back sides. The area of single glass is not more than 3m2. At the same time, it should consider adding unnecessary cost during transportation.
